Brief Introduction
.
KHICRANES is specialized in designing and manufacturing of heavy duty material transport equipment. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle, overhead cranes, gantry cranes, Jib cranes and so on.

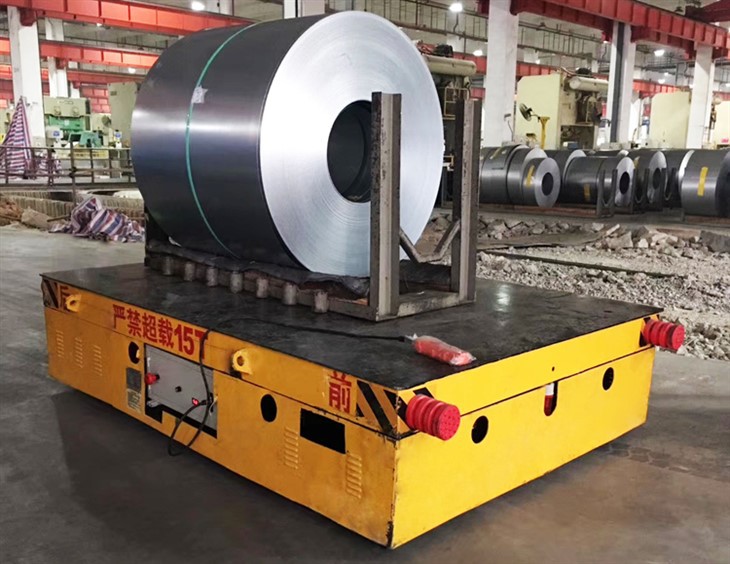

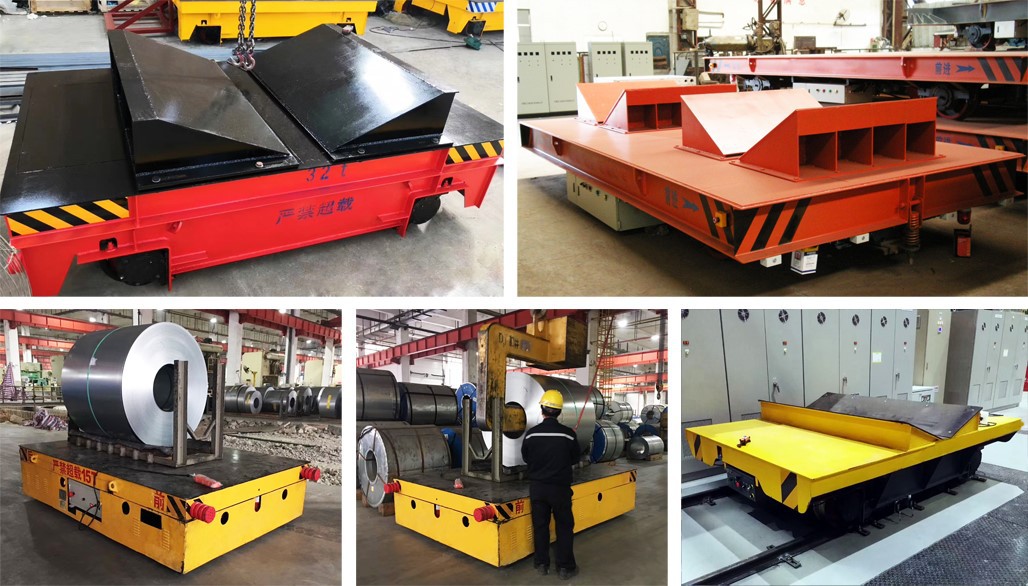

Steel coil transfer trolleys are used to transport steel coils and tubes, moulds, machine parts, paper products in factory. This series of transfer carts are mainly aimed at handling cylindrical workpieces, and the table is specially designed to prevent rolling and slipping of steel coils during transportation, so as to ensure that steel coils are easily, accurately and safely moved to their destination.
Advantages Of KSC Model Steel Coil Transfer Cart
1.Low noise
Precise design and manufacturing processes enable electric transfer trolley to result in low noise levels.
2.Maximum security
Multiple safety measures and special designs provide maximum safety for the operator and the material being handled.
3.Easy to operate
The careful design solution makes this electric transfer trolley easy to operate and can work continuously for a long time.
4.Low requirements for workplace
The trolley can operate on ordinary workshop floors; no complicated installation required
5.Various sizes and tonnage can be can be customized
Available in a variety of load-bearing designs, up to 200 tons.
Main Technical Data Of KSC Steel Coil Tranfer Cart
|
Model |
KSC-2t |
KSC-20t |
KSC-50t |
KSC-100t |
KSC-150t |
|
|
Rated load capacity(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Dimensions (mm) |
Length |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Running speed(m/min) |
0~25 |
0~20 |
0~20 |
0~20 |
0~18 |
|
|
Motor power (Kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Recommended rail |
P16 |
P24 |
P43 |
QU100 |
QU120 |
|
|
Note: Various non-standard specifications steel coil transfer cart can be designed and customized according to customer's needs |
||||||
