Introduction:
Are you tired of traditional grab tools that only grab plain objects? Do you want a more versatile and efficient tool to handle materials with a rough and irregular surface like orange peel, demolition waste, or coal? We have the answer for you – the Orange Peel Grab!
As a leading manufacturer of material handling equipment in China, we have developed high-quality Orange Peel Grabs that have helped countless businesses improve their efficiency and reduce their labor costs. Our products are built to withstand the toughest working conditions and deliver unbeatable performance.
In this product introduction, we will highlight the key features and benefits of the Orange Peel Grab, as well as explain how it can help your business grow and succeed.
Key Features:
The Orange Peel Grab is a specialized tool designed to handle objects with rough and irregular surfaces. Here are some of the key features that make our product stand out:
- Robust Design: Our Orange Peel Grabs are made of high-quality steel that can withstand heavy use and harsh working conditions. They are built to last and require minimal maintenance.
- Versatile Operation: The Orange Peel Grab can handle a wide variety of materials, including orange peel, demolition waste, scrap metal, coal, and more. Its unique design allows it to grip materials with a rough and irregular surface, making it an essential tool for many industries.
- Precise Control: Our Orange Peel Grab comes with a hydraulic system that allows for precise control of the grab's opening and closing. This feature allows operators to handle materials with greater accuracy, reducing the risk of damage or waste.
- Easy Installation: The Orange Peel Grab can be easily attached to most types of cranes and excavators, making it a convenient and cost-effective solution for businesses looking to improve their material handling capabilities.
Benefits:
The Orange Peel Grab offers a range of benefits to businesses that use it. Here are some of the key advantages of our product:
- Improved Efficiency: The Orange Peel Grab can handle materials that traditional grab tools cannot. This means that businesses can reduce the number of tools they require, minimize downtime, and improve their overall efficiency.
- Labour Savings: Handling rough and irregular materials can be time-consuming and labour-intensive. The Orange Peel Grab can handle these materials with ease, reducing the need for manual labour and saving businesses significant costs.
- Increased Safety: Handling unstable materials can be dangerous, particularly if they are sharp or have jagged edges. The Orange Peel Grab allows operators to handle these materials safely and efficiently, reducing the risk of injury or damage.
- Versatile Application: The Orange Peel Grab is suitable for a wide range of industries, including construction, demolition, mining, and more. Its versatility makes it an excellent investment for businesses looking to expand their capabilities and increase their profitability.
Conclusion:
The Orange Peel Grab is a specialized tool designed to handle rough and irregular materials with ease. It offers a range of benefits to businesses that use it, including improved efficiency, labour savings, increased safety, and versatile application.
As a leading manufacturer of material handling equipment in China, we are committed to providing our customers with high-quality products and exceptional service. If you are interested in learning more about our Orange Peel Grab or any of our other products, please don't hesitate to contact us. We would be happy to answer any questions you may have and provide you with a quote.
Orange peel grabs include four-petal grabs, six-petal grabs, and eight-petal grabs. According to the working principle, it can also be divided into mechanical type (such as single rope, double rope, four rope), motor type, hydraulic type and other types. Among them, the six-petal mechanical type and the six-petal hydraulic type are the most common.
The orange peel grab is suitable for all kinds of harsh environments to grab materials with irregular shapes and difficult to grab, such as garbage, ores, scrap steel, aluminum ingots, limestone, gravel, etc. Therefore, this series of grabs are widely used in garbage trucks, scrap yards, ports, mines, railway freight yards, etc.

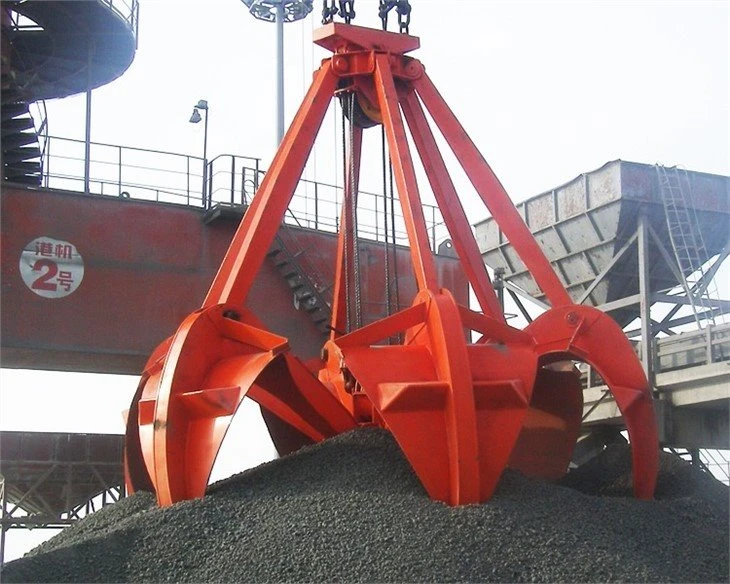

Mechanical orange peel grab

|
Model |
Grab volume (m³) |
Material specific gravity (t/m³) |
Diameter of max opening size (mm) |
Grab closed size (mm) |
Grab dead weight (t) |
Crane capacity (t) |
|
LS0305 |
0.5 |
≥1.8 |
φ2460 |
φ1800x2150 |
1.52 |
3 |
|
LS0507 |
0.75 |
≥2.5 |
φ2600 |
φ2000x2380 |
2.46 |
5 |
|
LS0510 |
1 |
≥2 |
φ2800 |
φ2200x2690 |
2.6 |
5 |
|
LS0515 |
1.5 |
≥1.5 |
φ2900 |
φ2450x2850 |
2.5 |
5 |
|
LS0530 |
3 |
≥0.8 |
φ3500 |
φ2830x3450 |
2.6 |
5 |
|
LS1015 |
1.5 |
≥3.3 |
φ3000 |
φ2580x3380 |
4.9 |
10 |
|
LS1020 |
2 |
2 |
φ3200 |
φ2700x3430 |
4.6 |
10 |
|
LS1030 |
3 |
1.6 |
φ3400 |
φ3000x3650 |
4.7 |
10 |
|
LS1050 |
5 |
1.0 |
φ4300 |
φ3650x4930 |
4.5 |
10 |
|
LS1065 |
6.5 |
0.6 |
φ6030 |
φ4050x5650 |
5.2 |
10 |
|
LS1630 |
3 |
2.5 |
φ3600 |
φ3250x4370 |
7.8 |
16 |
|
LS1660 |
6 |
1.5 |
φ6000 |
φ4130x5790 |
7.2 |
16 |
|
LS1680 |
8 |
0.8 |
φ6800 |
φ4750x6230 |
8.4 |
16 |
Note: other models, or more details, please contact us directly.
Hydraulic orange peel grab

|
Model |
Grab volume (m³) |
Working pressure of grab (Mpa) |
Motor power (Kw) |
Grab petal number |
Dead weight (t) |
Crane capacity (t) |
|
DYD0303 |
0.3 |
16 |
7.5 |
6 |
1.3 |
3 |
|
DYD0305 |
0.5 |
16 |
11 |
6 |
1.8 |
3 |
|
DYD0510 |
1 |
16 |
15 |
6 |
2.5 |
5 |
|
DYD1015 |
1.5 |
16 |
22 |
6 |
3.1 |
10 |
|
DYD1018 |
1.8 |
16 |
22 |
6 |
4.0 |
10 |
|
DYD1230 |
3 |
21 |
37 |
6 |
5.2 |
12 |
|
DYD1240 |
4 |
21 |
37 |
6 |
5.0 |
12 |
|
DYD1632 |
3.2 |
24 |
30 |
6 |
4.8 |
16 |
|
DYD2040 |
4 |
24 |
37 |
6 |
7.0 |
20 |
|
DYD2550 |
5 |
24 |
45 |
6 |
8.8 |
25 |

Why choose us?
- We work closely with our clients to understand their needs and provide tailored Grab Bucket solutions that truly meet their expectations.
- Our company's image, credibility, product technology quality assurance and production capacity have been well received by the majority of users.
- Our skilled and experienced team is dedicated to providing the best possible service and support to all of our customers.
- Our company focuses on providing all kinds of advanced Orange Peel Grab for the market and strives to achieve industrial transformation. We will always adhere to the development concept of "innovation" and provide more high-quality products and services for enterprises and units.
- We believe that open, honest communication is crucial to building strong relationships with our customers and providing exceptional service.
- We are committed to creating a united, friendly, harmonious development of learning, innovative and happy team.
- With our state-of-the-art manufacturing facilities and experienced staff, we can guarantee the highest quality Grab Bucket products and services.
- Upon today, we have customers from all over the world.
- Our Grab Bucket products are rigorously tested to ensure that they meet all relevant safety requirements and performance standards.
- The company will fulfill its firm commitment to customers with better products and more perfect services.
